Construction of an extrusion surface

The function

MbResultType ExtrusionSurface( const MbCurve3D  &  curve,
                               const MbVector3D &  direction,
                                     bool          simplify,
                                     MbSurface  *& result )

constructs an extrusion surface.

The input parameters of the function are:

  • curve — a generatrix curve;

  • direction — an extrusion vector that defines a direction and a length;

  • simplify — a flag for simplifying a surface, if it is possible (for example, reducing it to a simpler analytical type when it is allowed).

The output parameter of the function is the constructed surface result.

If successful, the function returns rt_Success; otherwise, it returns a result code from the MbResultType enumeration (see mb_operation_result.h).

The function is declared in the action_surface.h file.

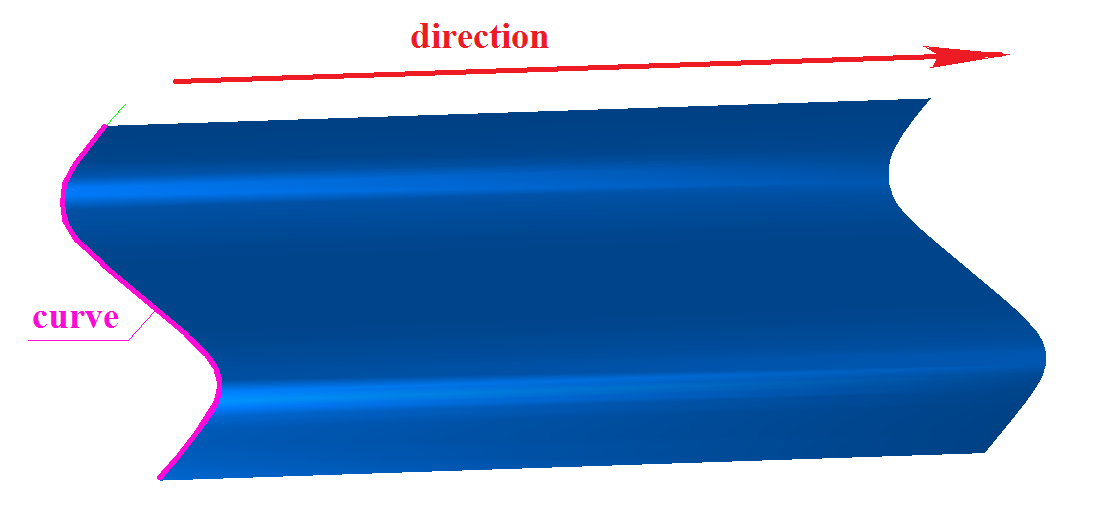

An extrusion surface is one of the motion surfaces obtained by moving a generatrix curve along a given trajectory (a directing curve). For an extrusion surface, the trajectory is a straight-line segment defined by the direction vector. The extrusion surface is described in MbExtrusionSurface extrusion surface. Figure shows a surface constructed by extrusion of a curve along a given vector:

../../../../_images/M.5.3.1.png

In the test application test.exe, construction of an extrusion surface is performed by the menu command “Create → Surface → Based on curves → Extrusion”.
