Constructing a Ruled Body

The function

MbResultType RuledShell( const MbRuledShellParams & ruledParams,
                               MbRuledShellResult & outParams );

constructs a non-closed ruled body from two parametrically defined curves.

A ruledParams object of the MbRuledShellParams class is the input parameter of the function (see op_shell_parameter.h) and contains the construction parameters:

  • pars – is an object containing operation parameters (geometric information needed to construct the body);

  • operNames – is the operation namer;

  • isPhantom – is the phantom creation mode.

The function output parameter is the result parameter, which contains a constructed body.

The function returns a result code of the operation from the MbResultType enumeration (see mb_operation_result.h).

This function is declared in action_shell.h file.

A ruled body is constructed from two curves – pars.curve0 and pars.curve1. If the curves are composite, then a ruled surface will be constructed based on each pair of compound curve segments, and a body face will be constructed on each surface. Adjacent faces will have common edges.

The pars.curve0 and pars.curve1 curves can be additionally split into segments using pars.breaks0 and pars.breaks1 parameters.

The pars.joinByVertices parameter indicates whether it is required to connect the contours having the same number of segments through the vertexes. By default, pars.joinByVertices = false.

The pars.checkSelfInt parameter indicates whether it is necessary to check the curves for self-intersection. By default, pars.checkSelfInt = false.

The pars.simplifyFaces parameter specifies whether to simplify edges of a constructed body.

The pars.proportional parameter initiates the proportional natural curve parametrization.

The pars.mismatchMax parameter defines the acceptable mismatch of opposite segment connection points.

The pars.segmentSplit parameter indicates whether to divide a shell into faces by contour segments.

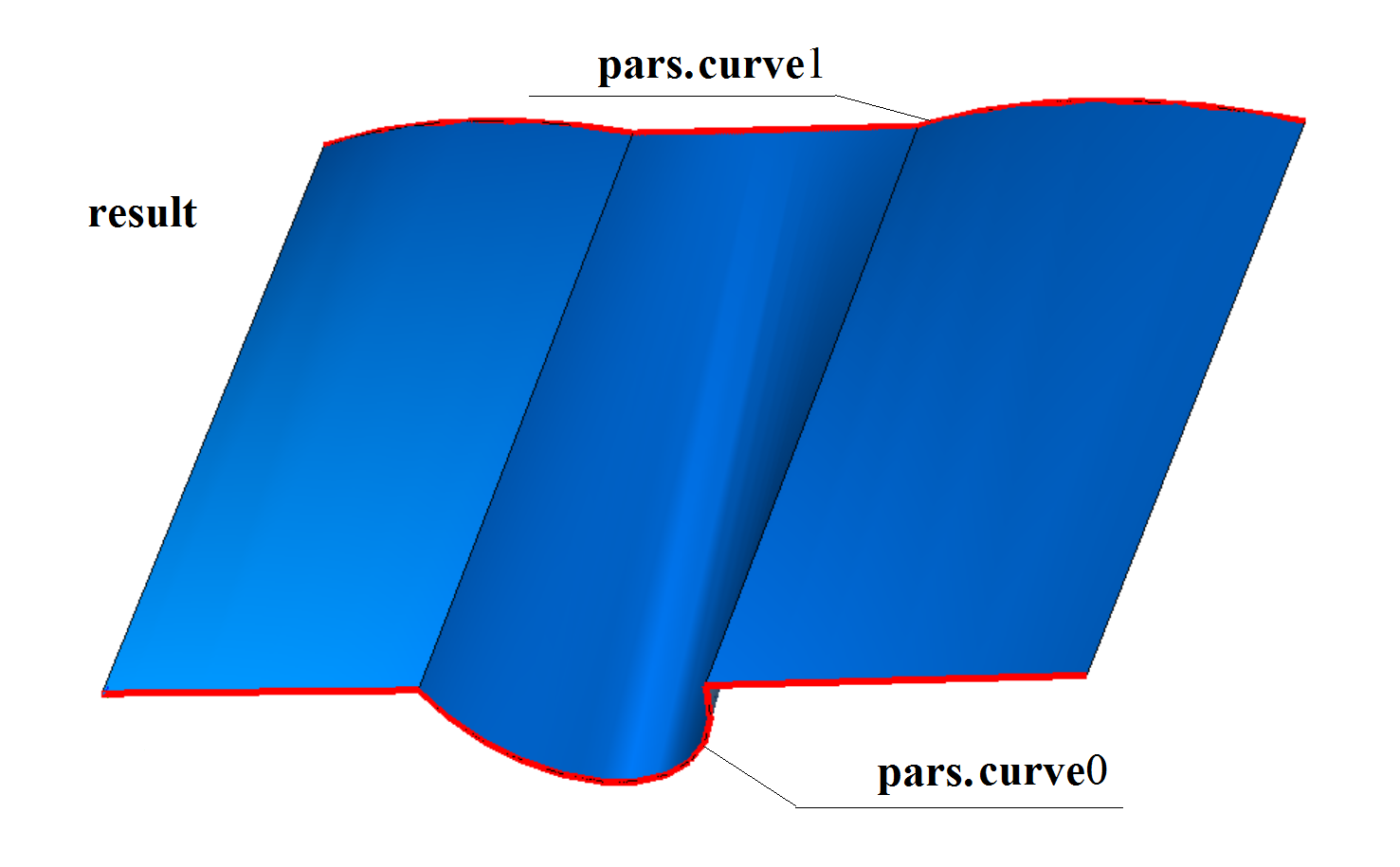

Fig. shows a ruled body constructed from compound curves and each curve has three segments:

../../../../_images/M.1.9.2.png

A constructed body has one or several faces. A ruled surface always has borders formed by the initial curves. This function can check the faces for self-intersection. pars.curve0 and pars.curve1 curves can be cyclically closed. The function adds MbRuledShell constructor declared in cr_ruled_shell.h file in a newly constructed body log.
