MbAssembly Assembly Unit

The MbAssembly class is declared in the assembly.h file.

The MbAssembly assembly unit, or assembly, is derived from the MbItem class and is described by a set of geometric model objects std::vector< MbItem * > assemblyItems.

An assembly is a set of geometric model objects that can be manipulated as a single object.

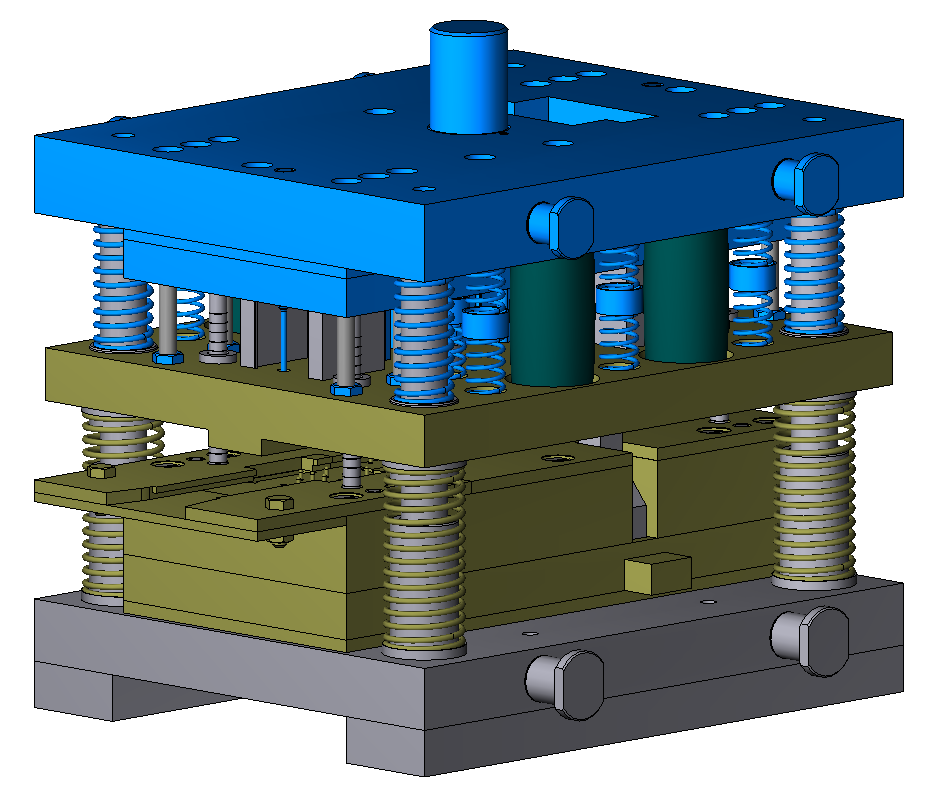

An assembly unit is shown in Fig. 1.

../../../../_images/O.8.7.1.png — Fig. 1

An assembly unit may contain other assembly units as its objects, that is, it may have a tree-like structure.
