MbChamferSurface Chamfer Surface
Class MbChamferSurface is declared in the surf_chamfer_surface.h file.
The chamfer surface MbChamferSurface belongs to the group of blending surfaces MbSmoothSurface. The chamfer surface is defined by a curve on the first blended surface MbSurfaceCurve curve1, a curve on the second blended surface MbSurfaceCurve curve2, the chamfer construction method form, the chamfer legs distance1 and distance2, the boundary values umin and umax of the parameter of the curves curve1 and curve2, the boundary values of the second surface parameter vmin and vmax, the flag of the first surface parameter periodicity uclosed, the flag that indicates the presence of a surface pole at the initial value of the first parameter poleMin, and the flag that indicates the presence of a surface pole at the final value of the first parameter poleMax.
The curves curve1 and curve2 are coordinated with each other and have the same parameter domain. The first surface parameter u coincides with the parameter of the curves curve1 and curve2, which is common for them. The first surface parameter takes values on the segment umin ≤ u ≤ umax, which corresponds to the domain of the curves curve1 and curve2. The surface can be periodic in the first parameter if the curves curve1 and curve2 are periodic.
The second surface parameter v takes values on the segment vmin ≤ v ≤ vmax. The value v = vmin corresponds to a point on the curve curve1, and the value v = vmax corresponds to a point on the curve curve2. The surface cannot be periodic in the second parameter.
In the PointOn( double u, double v, MbCartPoint3D & s ) method, the radius vector of the surface s is described by the vector function
where

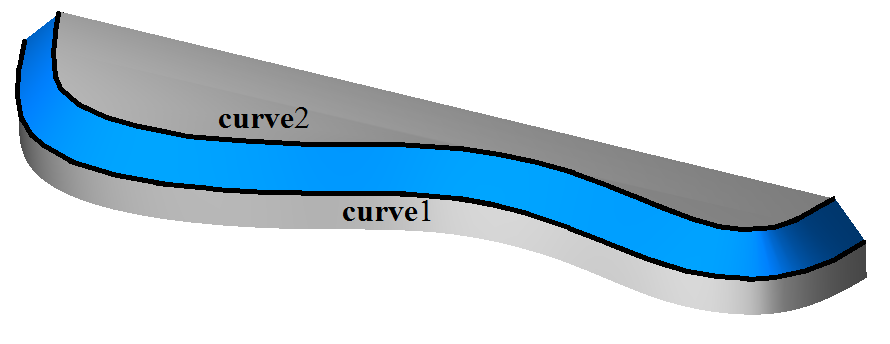

The chamfer surface is shown in the figure:
The curves on the surface s(const, v) with u = const are straight-line segments. The surface can have a pole at u = umin and u = umax if the corresponding ends of the curves curve1 and curve2 coincide.
