Constructing a Compound Curve

The function

MbResultType CreateContour( MbCurve3D   &  curve,
                            MbContour3D *& result )

constructs a compound curve based on a single source curve.

The input parameter of the function is the source curve curve.

If successful, the function returns rt_Success, otherwise it returns an error code from the enumeration MbResultType.

The output parameter of the function is the constructed compound curve (contour) result.

If successful, result returns a pointer to a new MbContour3D object; the caller is responsible for deleting this object.

The function is declared in the action_curve3d.h file.

The function creates the compound curve result based on the source curve curve. If the source curve curve is a compound curve, the constituent elements of the source curve are placed into the curve result. A compound curve is described in subsection Contour MbContour3D.

The function

MbResultType AddCurveToContour( MbCurve3D & curve,
                                MbCurve3D & contour,
                                bool        toEnd )

modifies a compound curve by adding a curve.

The input parameters of the function are:

  • curve is the curve to be added;

  • contour is the compound curve to be modified;

  • toEnd is a flag that specifies where to add the curve.

The output parameter of the function is the modified curve contour.

If successful, the function returns rt_Success; otherwise, it returns an error code from the enumeration MbResultType.

The function is declared in the action_curve3d.h file.

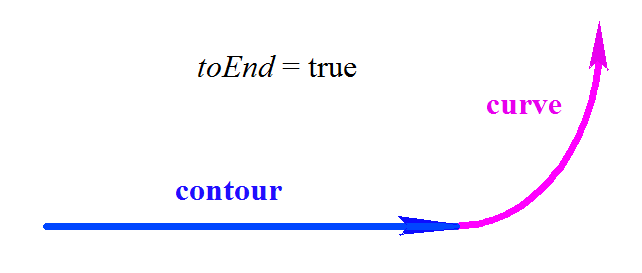

The function modifies the compound curve contour by adding the curve curve to the beginning or to the end of the compound curve. If toEnd = true, the curve curve is added to the end of the compound curve contour; if toEnd = false, the curve curve is added to the beginning of the compound curve contour. The joint points of the curve being modified and the curve being added must coincide, see Fig. 1:

../../../../_images/M.4.7.1.png

Fig. 1

If the curve curve being added is a compound curve, the constituent elements of the curve being added are added to the curve contour.

The function

MbResultType CreateContours( RPArray<MbCurve3D> &   curves,
                             double                 metricEps,
                             RPArray<MbContour3D> & result,
                             bool                   onlySmoothConnected = false,
                             VERSION                version = Math::DefaultMathVersion() )

constructs compound curves from a set of source curves (original curves).

The input parameters of the function are:

  • curves is a set of source curves;

  • metricEps is a capture radius for joining the source curves;

  • onlySmoothConnected is a flag to use smooth joining of the source curves;

  • version is an operation version.

The output parameter of the function is a set of constructed compound curves result.

If successful, the function returns rt_Success, otherwise it returns an error code from the enumeration MbResultType.

The function is declared in the action_curve3d.h file.

The function creates compound curves based on the source curves curves and stores them in the set result.

If the flag onlySmoothConnected = true, all the constructed compound curves are smooth, that is, the curves have equally directed tangents at the joint points, but the derivative length at the joint points may change abruptly. If any source curve in the set curves is a compound curve, the constituent elements of such a source curve are added to a compound curve.

Degenerate curves, null-pointer curves and duplicate curves are removed from the input array if they have no owner.

The function

MbResultType CreateContours( RPArray<MbCurve3D> & curves,
                             double               metricAcc,
                             bool                 onlySmoothConnected = false,
                             VERSION              version = Math::DefaultMathVersion() )

constructs contours from a set of curves with removal of degenerate curves (on original curves).

The input parameters of the function are:

  • curves is the set of source curves (it is modified);

  • metricAcc is the capture radius for joining the source curves;

  • onlySmoothConnected is a flag that specifies that only smoothly joined segments are used in a contour;

  • version is the operation version.

The output parameter of the function is the set curves, which, after the execution, contains the constructed compound curves.

If successful, the function returns rt_Success, otherwise it returns an error code from the enumeration MbResultType.

The function is declared in the action_curve3d.h file.

The function automatically removes from the array curves all degenerate curves (with zero length or with coincident start and end points for non-closed curves), null-pointer curves and duplicate curves that have no owner. The resulting compound curves are stored back into the array curves, replacing the original elements.
