Multiline MbMultiline

The MbMultiline class is declared in the multiline.h file.

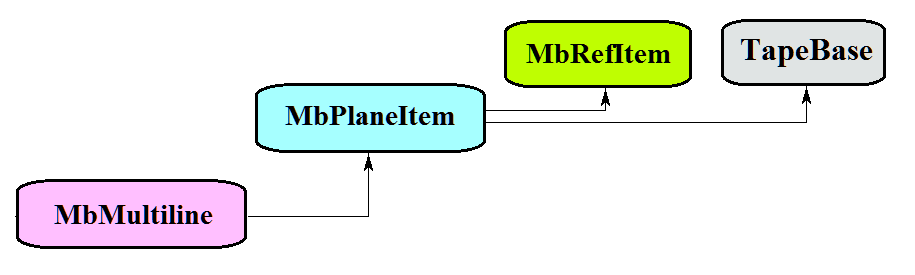

The MbMultiline multiline is derived from the MbPlaneItem class, see Fig. 1:

Fig. 1

The multiline is defined by the base contour basisCurve, the set of vertices vertices, the set of radii equidRadii, the parameters of the start edge of the multiline begTipParams, the parameters of the end edge of the multiline endTipParams, the flag of periodicity processing processClosed, the transparency flag isTransparent, the set of curves curves, the set of tips at the vertices of the multiline tipCurves, the tip at the start vertex of the multiline begTipCurves, and the tip at the end vertex of the multiline endTipCurves.

The multiline represents a contour that has thickness. The contour thickness is variable. The contour edges and the joints of the contour segments can have different shapes.

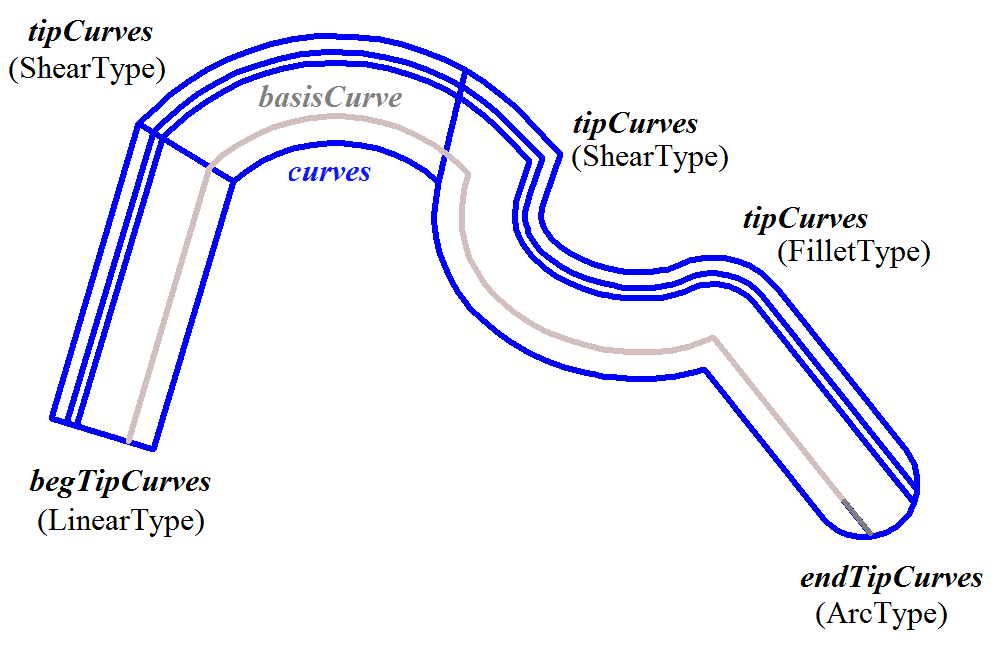

The multiline is shown in Fig. 2:

Fig. 2

The multiline is used for data exchange with other systems.
